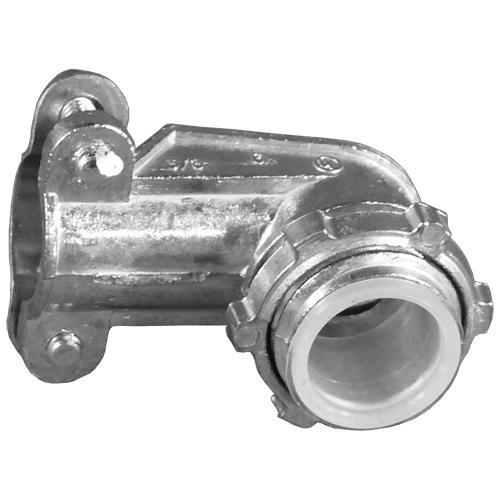

The AC: 90° Two Screw Clamp is designed for securely terminating conduit or cable at a 90° angle to a knockout or unthreaded slip hole in dry location boxes or enclosures. It features male hub threads (NPS), a center-stopped design, and comes furnished with a locknut. Additionally, it offers the option of an insulated throat for enhanced safety. The clamp is equipped with combination head screws on AC(I)-90 through AC(I)-96 sizes, providing versatility in installation.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Features
• Male hub threads — NPS
• All center stopped
• Furnished with locknut
• Zinc die cast body
• Steel/zinc plated Cover
Application
• Used to make a 90° termination of conduit or cable to a knockout or unthreaded slip hole in a dry location box or enclosure.
NEC/CEC Certifications and Compliances
• UL Standard: 514B
• UL Listed: E25014
• CSA Standard: C22.2 No. 18.3
• CSA Certified: 208044
• NEMA: FB-1
